Description
Features

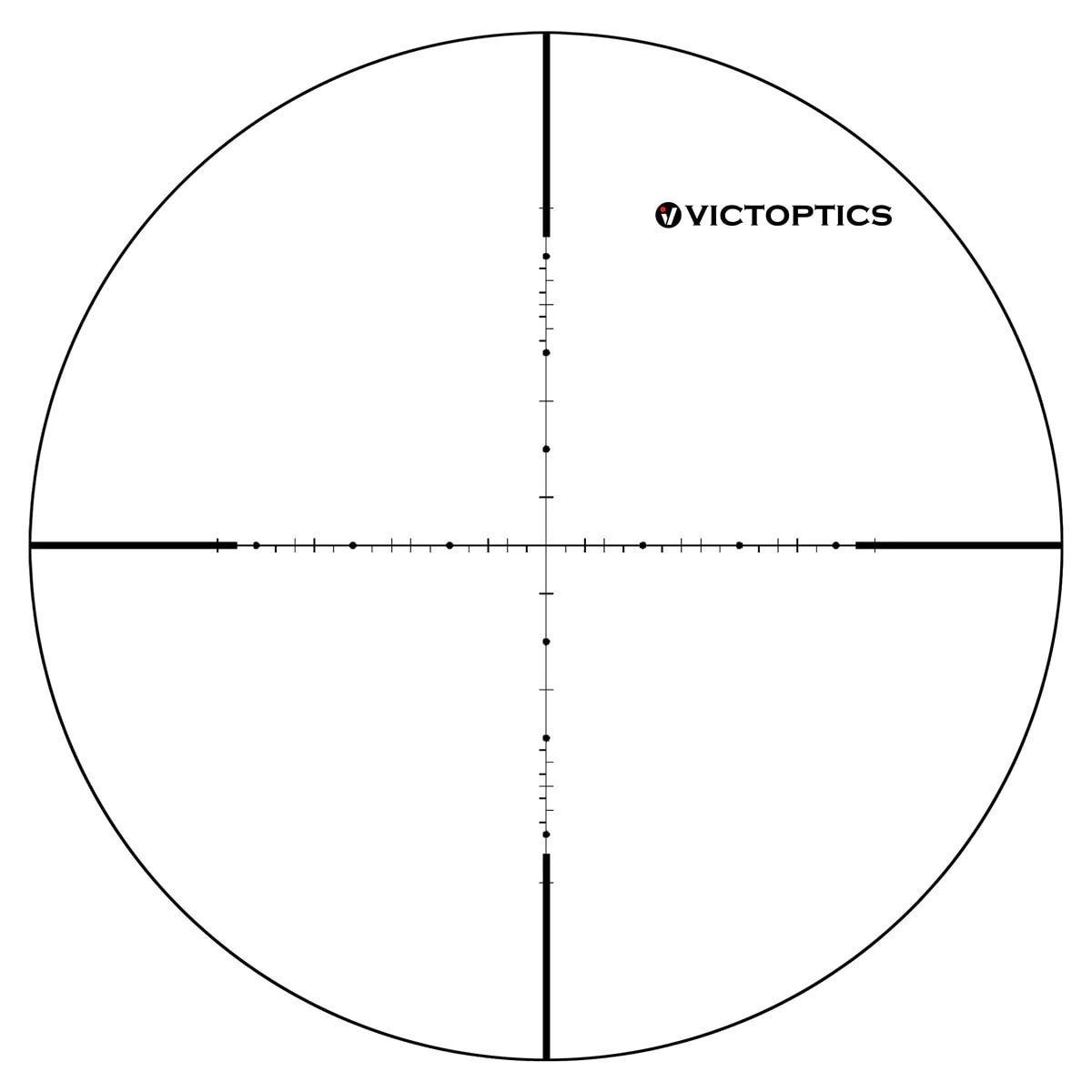

MDL Reticle in SFP w/ BDC and Ranging Marks Provides Accurate Holdover and Quick Target Corrections
Precise 1/10 MIL Clicks w/ 15 MIL Elevation Range and Side Focus from 15 Yds for Versatile Shooting
Fully Multi-Coated Optics on a 30mm Monotube Deliver Edge-to-Edge Clarity and Reliable Light Transmission
Turret Lock Prevents Accidental Adjustments, Keeping Settings Secure for Consistent Airgun Scope Accuracy
Includes Power Ring Lever, Sunshade, and Big Side Wheel for Rapid Zoom, Glare Reduction, and Improved Ergonomics
Specification
· Magnification: 4-16x
· Focal Plane: Second Focal Plane
· Objective Lens: 44mm
· Ocular Lens Dia: 35mm / 1.4 inch
· Ocular Length: 58mm / 2.3 inch
· Exit Pupil: 11.0-2.75mm
· Tube Diameter: 30mm
· Length: 315mm / 12.4 inch
· Weight (net): 530g / 18.7oz
· Eye Relief: 96mm / 3.8 inch
· Field of View (@100yds): 28.8-7.2 feet
· Optics Coating: Fully Multi-Coated
· Reticle: MDL Wire Reticle
· Click Value: 1/10MIL
· Evaluation Range: 15MIL
· Windage Range: 15MIL
· Parallax Adjustment: 15 Yds to infinite
· Finish: Black matte
· Illumination: N/A
· Side Focus: from 15 yards to infinity
· Shock tested to 750g, water resistant and fully nitrogen purged
· Turret lock system. Pull to adjust, Depress to lock.
· High quality 6061 T6 aircraft grade aluminum
· Diopter compensation: -2 to +2

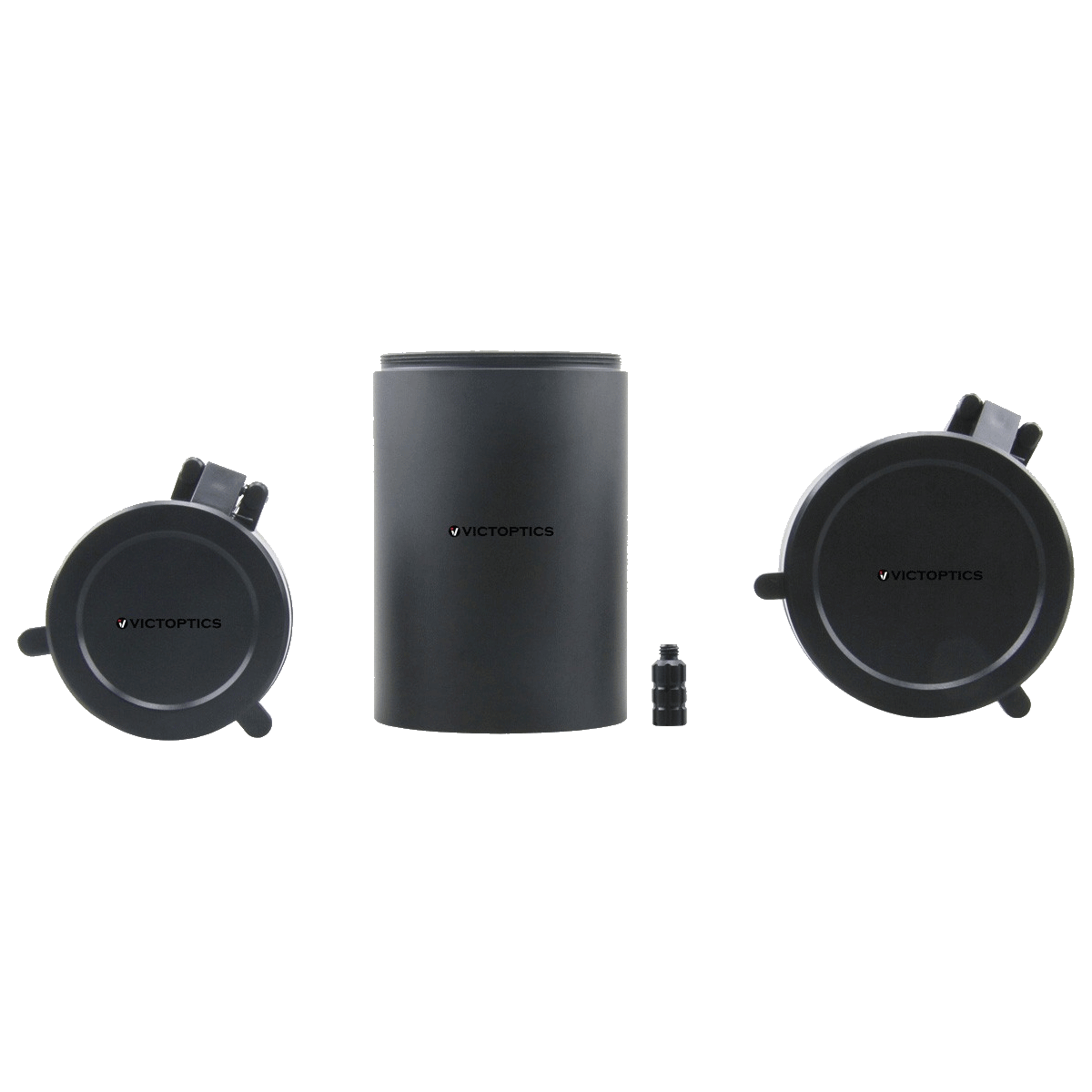

· Including items: 30mm weaver rings (default) or dovetail mount ring (on request only), big side wheel, power ring lever mount, 3 inch sunshade, cleaning cloth, instruction, lens flip-up caps
